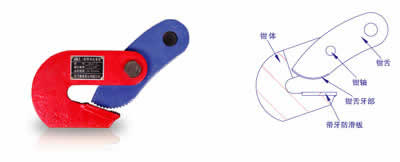

L CLAMP

• Part No.
• 0208060105
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

1.Using For Lifting Steel Plate Levely.
2.In The Process Of Being Lifted Onto A Collision Can Not Be Suspended.
3.The Rated Load Means The Maximum Weight Whichbe Sustained By Clamps With The Included Angle Of 60O The Two Legs.
4.Hoisting Operations In Group 4 Complementary, And Must Be Set To Use Balance Beam.
5.The Proof Load Is 2 Times Working Load Limit,The Breaking Load Is 4 Times Working Load Limit.
6.Please Read The Product Sepcification Carefully Before Using It.

ART.NO	WLL/PAIR t	STELL PLATE mm	WEIGHT kg
L0.75	0.75	0～15	1.6
L1.5	1.5	0～25	6.2
L2.5	2.5	25～50	10
L5	5	50～80	18
