OVERTURN CLAMP

• Part No.
• 0208060102
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

1.Using For Lifting Steel Plates Level And Steel Plate Or Steel For Overturn.
2.In The Process Of Being Lifted Onto A Collision Can Not Be Suspended.
3.Allowed For Lifting Of A Single Flip Clamp Is The Maximum Weight,The Lifting Operation Can Use Single.
4.You Must Add Balance Beam When It Is Lifted Level.
5.The Proof Load Is 2 Times Working Load Limit,The Breaking Load Is 4 Times Working Load Limit.
6.Please Read The Product Sepcification Carefully Before Using It.

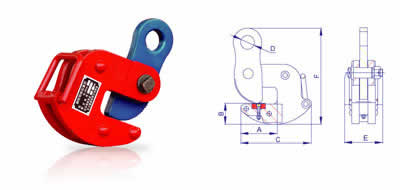

ART.NO	WLL/PAIR t	STELL PLATE mm	A mm	B mm	C mm	D mm	E mm	F mm	WEIGHT kg
DFQ1.5	1.5	0～20	80	43	153	30	80	205	5.2
DFQ2.5	2.5	0～30	105	52	190	35	90	270	8.7
DFQ5	5	10～40	136	82	247	46	114	380	25
DFQ10	10	20～50	160	85	300	60	129	410	35
