VERTICAL LIFTING CLAMP

• Part No.
• 0208060101
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

1.Using For Lifting Steel Vertical.
2.Only A Single Hoisting Operation Or Using Of Two Complementary, Only A Single Vertical Clamp Lifting Weights Is The Largest Rated Load.
3.Lifting Must Be Locking Up The Handle So That The Spring Tension;Unloading When The Locking Handle Down, Relax Spring, And Clamp Plate Can Bu Separated.
4.The Vertical Lifting Clamp Of Dsq1、Dsq2、Dsq3And Dsq5, The Proof Load Is 2 Times Working Load Limit,The Breaking Load Is 4 Times Working Load Limit.
5.The Vertical Lifting Clamp Of Dsq8、Dsq12、Dsq16, The Proof Load Is 1.5 Times Working Load Limit,The Breaking Load Is 3 Times Working Load Limit.
6.Please Read The Product Sepcification Carefully Before Using It.

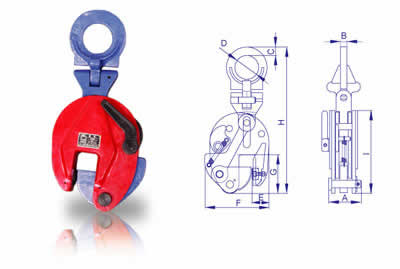

Art.NO	WLL /PAIR t	STEEL PLATE mm	A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm	I mm	OPENNING mm	WEIGHT kg
DSQ1	1	0～16	59	12	16	45	32	122	73	277.5	155	50	3.7
DSQ2	2	0～22	61	16	23	55	45	165	88	340	190	55	6.3
DSQ3	3	5～30	72	16	28	60	55	195	110	374	227	70	10.5
DSQ5	5	16～50	82	20	33	70	70	250	135	458	275	90	19.3
DSQ8	8	40～80	100	25	40	80	91	345	175	610	370	130	40
DSQ12	12	50～90	107	28	45	90	105	430	182	635	380	150	55
DSQ16	16	60～100	107	41	50	100	115	455	200	650	410	160	63
