By the hanging ears clamp legs, legs clamp drive system, electrical and electric control systems, cable reel, and other parts The structure is compact, the weight is light, clamps takes accurately, the efficiency is high, serviceable, the technological advance, the service is convenient. Widely used in steel slab and move off the assembly line, stacking storage terminals, train ,car ,shipment and so on May carry on the special design according to the user request

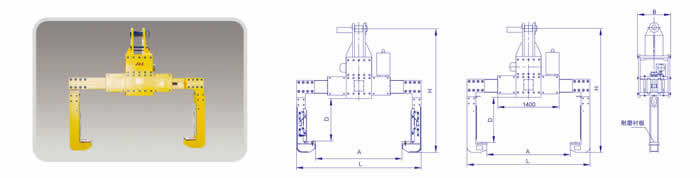

WLL(t) | Steel coil Parameters(mm) | Opening degree A(mm) | Max.outline.size(mm) | Leg position way | Note | Weight(kg) | |||
D | L | B | H | ||||||
10 | Insideф508 Outsideф2150 |
300~2000 | 1000 | 2900 | 720 | 2950 | Journey limit switch Photoelectinity limit switch |
Max.temperature:600℃ Max.temperature:80℃ |
3000 |
20 | Insideф508 Outsideф2150 |
300~2000 | 1000 | 2900 | 720 | 2950 | Journey limit switch Photoelectinity limit switch |
Max.temperature:600℃ Max.temperature:80℃ |
3200 |
30 | Insideф508 Outsideф2150 |
300~2000 | 1000 | 2900 | 720 | 2950 | Journey limit switch Photoelectinity limit switch |
Max.temperature:600℃ Max.temperature:80℃ |
3400 |
40 | Insideф508 Outsideф2150 |
300~2000 | 1000 | 2900 | 720 | 2950 | Journey limit switch Photoelectinity limit switch |
Max.temperature:600℃ Max.temperature:80℃ |
3800 |
