C TYPE PLATE BENDING

• Part No.
• 0208030104
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

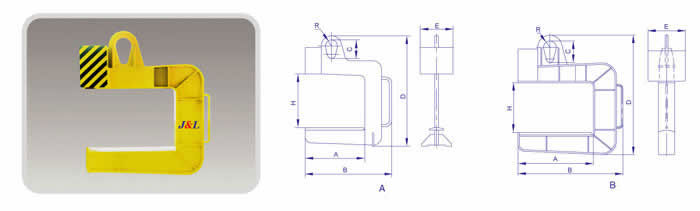

Apply to steel plate's horizontal hoisting. Breading load is 3.2T uses A type,<3.2T uses B type.

WLL(t)	Width of steel coil(mm)	Steel coil inner dia.(mm)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	H(mm)	R(mm)	Weight(kg)
3.2	≤300	≥400	300	590	155	845	250	430	50	85
	350-500	≥400	500	725	155	924	250	450	50	130
5	750-900	≥400	900	1225	200	1144	324	500	60	350
	900-1100	≥500	1100	1450	200	1331	318	600	60	420
	1100-1300	≥500	1300	1670	200	1332	375	600	90	530
10	750-900	≥500	900	1290	300	1555	435	650	90	570
	900-1120	≥500	1120	1555	300	1767	477	850	90	790
	1100-1300	≥500	1300	1758	300	1722	478	750	90	795
	1300-1500	≥500	1500	1955	300	1854	467	850	90	1120
16	900-1100	≥600	1100	1540	310	1850	594	850	90	1140
	1100-1250	≥600	1250	1710	310	1871	533	850	90	1250
25	900-1100	≥600	1100	1570	370	1982	633	860	110	1800
	1100-1300	≥700	1300	1810	370	2058	716	860	110	2130
32	1400-1660	≥700	1660	2240	550	2450	700	850	130	2950
