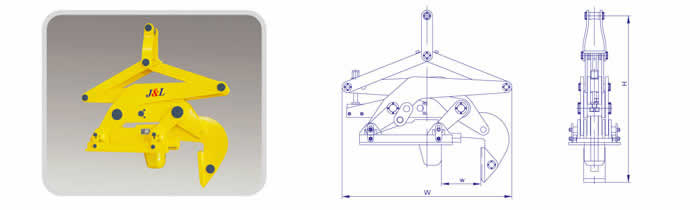

SINGLE -SIDE VERTICAL WRAPPED PLATE CLAMP

• Part No.
• 0208030102
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

Filing applied to the lifting, using automatic everaged working principle, its structure is simple and reasonable, The movement is flexible transports safely reliable Does not provide any force to be derived from the re-locking, the closed-positioning the realization of automatic shut up the opening and closing movements.

WLL(t)	Steel volume inside Min.dia.(mm)	Score of application(mm) w	Max.Overan.size(mm)		Weight(kg)
			W	H
4	Φ500	200-550	2400	3800	2500
8	Φ630	330-485	2400	3400	2600
12.5	Φ762	250-570	2500	4000	2800
32	Φ740	385-555	2800	4000	6300
