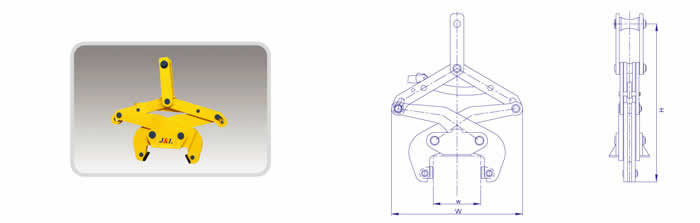

VERTICAL LIFTING ROLLING PLATE CLAMP( BRACE RLD TYPE)

• Part No.
• 0208030101
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

Filing applied to the lifting, using automatic everaged working principle, its structure is simple and reasonable, The movement is flexible transports safely reliable. Does not provide any force to be derived from the re-locking, the closed-positioning the realization of automatic shut up the opening and closing movements.

WLL(t)	Steel volume inside Min.dia.(mm)	Score of application(mm) w	Max.Overan.size(mm)		Weight(kg)
				H
6	Φ450	400-500	2200	2400	850
20	Φ450	150-450	2200	3100	1500
32	Φ450	350-700	2250	3050	2300
