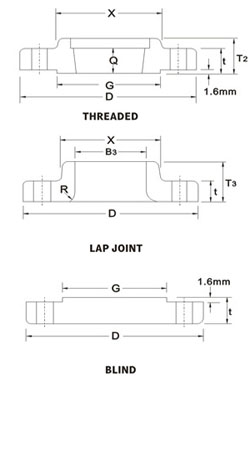

ANSI B 16.5 FORGED FLANGES Unit:mm (18)

  • Part No.
  • 0103030117
  • Manuf. No.
  • Standard Pack Quantity
  • 1
  • For prices and availability please Register or add to cart and submit as enquiry.
  • 　
  • EACH

Description

  • Norminal Pipe Size
  • 18
  • Depth of Socket-y
  • 19.3
  • DRILLING-Bolt Circle Diam
  • 577.9
  • DRILLING-Number of Holes
  • 16
  • DRILLING-Diam of Holes
  • 31.8
  • BOLTING-Diam of Bolts(inch)
  • 1 ⅛
  • BOLTING-Machine Bolt Length-Raised Face
  • 127.0
  • BOLTING-Stud Bolt Length-Raised Face
  • 146.1
  • BOLTING-Stud Bolt Length-Ring joint
  • 158.8
  • APPROXIMATE WEIGHT-Welding Neck-Kg
  • 74.84
  • APPROXIMATE WEIGHT-Slip-on and Threaded-Kg
  • 54.00
  • APPROXIMATE WEIGHT-Lap joint-Kg
  • 68.00
  • APPROXIMATE WEIGHT-Blind-Kg
  • 95.00
  • APPROXIMATE WEIGHT-Socket Welding-Kg
  • 58.72
