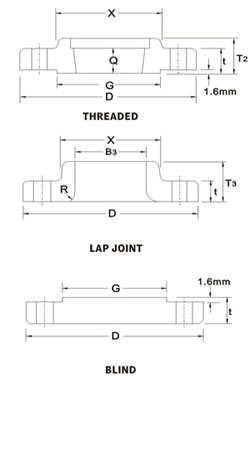

ANSI B 16.5 FORGED FLANGES Unit:mm (16)

  • Part No.
  • 0103030116
  • Manuf. No.
  • Standard Pack Quantity
  • 1
  • For prices and availability please Register or add to cart and submit as enquiry.
  • 　
  • EACH

Description

  • Norminal Pipe Size
  • 16
  • Depth of Socket-y
  • 44.5
  • DRILLING-Bolt Circle Diam
  • 539.8
  • DRILLING-Number of Holes
  • 16
  • DRILLING-Diam of Holes
  • 28.4
  • BOLTING-Diam of Bolts(inch)
  • 1
  • BOLTING-Machine Bolt Length-Raised Face
  • 114.3
  • BOLTING-Stud Bolt Length-Raised Face
  • 133.4
  • BOLTING-Stud Bolt Length-Ring joint
  • 146.1
  • APPROXIMATE WEIGHT-Welding Neck-Kg
  • 64.41
  • APPROXIMATE WEIGHT-Slip-on and Threaded-Kg
  • 45.00
  • APPROXIMATE WEIGHT-Lap joint-Kg
  • 52.98
  • APPROXIMATE WEIGHT-Blind-Kg
  • 78.00
  • APPROXIMATE WEIGHT-Socket Welding-Kg
  • 47.37
