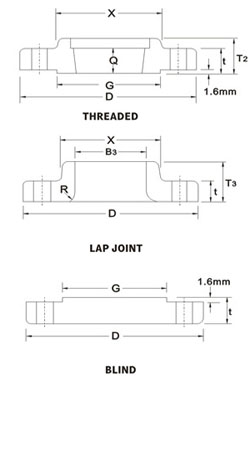

ANSI B 16.5 FORGED FLANGES Unit:mm (12)

  • Part No.
  • 0103030114
  • Manuf. No.
  • Standard Pack Quantity
  • 1
  • For prices and availability please Register or add to cart and submit as enquiry.
  • 　
  • EACH

Description

  • Norminal Pipe Size
  • 12
  • Depth of Socket-y
  • 39.6
  • DRILLING-Bolt Circle Diam
  • 431.8
  • DRILLING-Number of Holes
  • 12
  • DRILLING-Diam of Holes
  • 25.4
  • BOLTING-Diam of Bolts(inch)
  • 7/8
  • BOLTING-Machine Bolt Length-Raised Face
  • 101.6
  • BOLTING-Stud Bolt Length-Raised Face
  • 120.7
  • BOLTING-Stud Bolt Length-Ring joint
  • 133.4
  • APPROXIMATE WEIGHT-Welding Neck-Kg
  • 38.98
  • APPROXIMATE WEIGHT-Slip-on and Threaded-Kg
  • 27.68
  • APPROXIMATE WEIGHT-Lap joint-Kg
  • 28.30
  • APPROXIMATE WEIGHT-Blind-Kg
  • 44.00
  • APPROXIMATE WEIGHT-Socket Welding-Kg
  • 29.03
