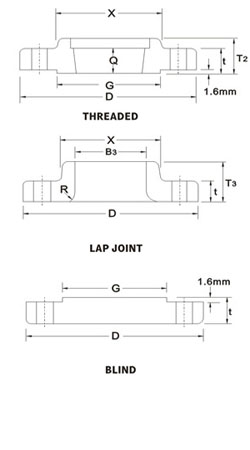

ANSI B 16.5 FORGED FLANGES Unit:mm (1/2)

  • Part No.
  • 0103030100
  • Manuf. No.
  • Standard Pack Quantity
  • 1
  • For prices and availability please Register or add to cart and submit as enquiry.
  • 　
  • EACH

Description

  • Norminal Pipe Size
  • 1/2
  • Depth of Socket-y
  • 9.7
  • DRILLING-Bolt Circle Diam
  • 60.5
  • DRILLING-Number of Holes
  • 4
  • DRILLING-Diam of Holes
  • 15.7
  • BOLTING-Diam of Bolts(inch)
  • 1/2
  • BOLTING-Machine Bolt Length-Raised Face
  • 50.8
  • BOLTING-Stud Bolt Length-Raised Face
  • 57.2
  • BOLTING-Stud Bolt Length-Ring joint
  • -
  • APPROXIMATE WEIGHT-Welding Neck-Kg
  • 0.52
  • APPROXIMATE WEIGHT-Slip-on and Threaded-Kg
  • 0.47
  • APPROXIMATE WEIGHT-Lap joint-Kg
  • 0.51
  • APPROXIMATE WEIGHT-Blind-Kg
  • 0.47
  • APPROXIMATE WEIGHT-Socket Welding-Kg
  • 0.47
