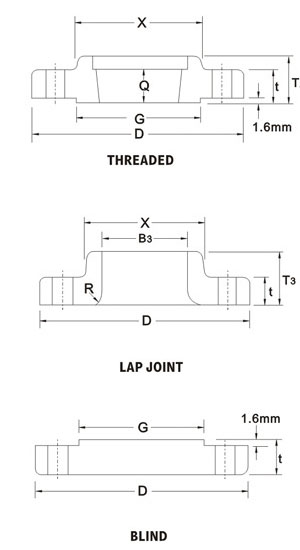

ANSI B 16.5 FORGED FLANGES Unit:mm (24)

  • Part No.
  • 0103020159
  • Manuf. No.
  • Standard Pack Quantity
  • 1
  • For prices and availability please Register or add to cart and submit as enquiry.
  • 　
  • EACH

Description


  • Norminal Pipe Size
  • 24
  • Outside Diam-D
  • 940
  • O.D.of Raised Face-G
  • 717.6
  • Dim at Base of Hub-X
  • 692.2
  • Thickness
  • 101.6
  • BORE-Welding Neck Socket Welding-B1
  • BORE-Slip-on Socket Welding-B2
  • 616.0
  • BORE-Lap Joint-B3
  • 616.0
  • LENGTHRU HUB-Welding Neck-T1
  • 614.4
  • Counter Bore Min.Thread Min.
  • 203.2
  • LENGTHRU HUB-Slip-on Threaded Socket Welding-T2
  • 139.7
  • LENGTHRU HUB-Lap Joint-T3
  • 184.2
  • Diam.of Hub at Bevel-A
  • 609.6
  • Radius of Fillet-R
  • 12.7
  • Thread Length-Q
  • 91.9
