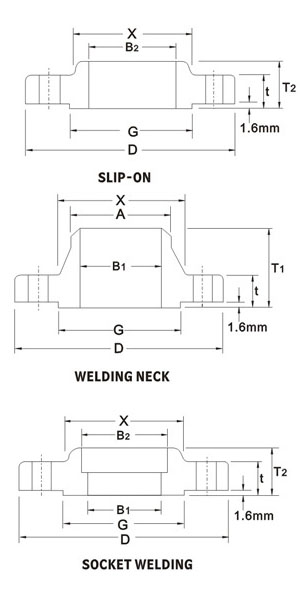

ANSI B 16.5 FORGED FLANGES Unit:mm (3/4)

  • Part No.
  • 0103020121
  • Manuf. No.
  • Standard Pack Quantity
  • 1
  • For prices and availability please Register or add to cart and submit as enquiry.
  • 　
  • EACH

Description

  • Norminal Pipe Size
  • 3/4
  • Outside Diam-D
  • 117
  • O.D.of Raised Face-G
  • 47.8
  • Dim at Base of Hub-X
  • 42.9
  • Thickness
  • 15.7
  • BORE-Welding Neck Socket Welding-B1
  • 20.8
  • BORE-Slip-on Socket Welding-B2
  • 27.7
  • BORE-Lap Joint-B3
  • 28.2
  • LENGTHRU HUB-Welding Neck-T1
  • 29.0
  • Counter Bore Min.Thread Min.
  • 57.2
  • LENGTHRU HUB-Slip-on Threaded Socket Welding-T2
  • 25.4
  • LENGTHRU HUB-Lap Joint-T3
  • 25.4
  • Diam.of Hub at Bevel-A
  • 26.7
  • Radius of Fillet-R
  • 3.0
  • Thread Length-Q
  • 15.7
