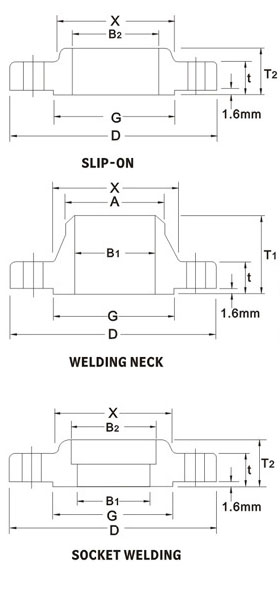

ANSI B 16.5 FORGED FLANGES Unit:mm (16)

  • Part No.
  • 0103020116
  • Manuf. No.
  • Standard Pack Quantity
  • 1
  • For prices and availability please Register or add to cart and submit as enquiry.
  • 　
  • EACH

Description


  • Norminal Pipe Size
  • 16
  • Outside Diam-D
  • 597
  • O.D.of Raised Face-G
  • 469.9
  • Dim at Base of Hub-X
  • 457.2
  • Thickness
  • 36.6
  • BORE-Welding Neck Socket Welding-B1
  • 387.1
  • BORE-Slip-on Socket Welding-B2
  • 410.5
  • BORE-Lap Joint-B3
  • 411.2
  • LENGTHRU HUB-Welding Neck-T1
  • 127.0
  • Counter Bore Min.Thread Min.
  • 63.5
  • LENGTHRU HUB-Slip-on Threaded Socket Welding-T2
  • 87.4
  • LENGTHRU HUB-Lap Joint-T3
  • 406.4
  • Diam.of Hub at Bevel-A
  • 12.7
  • Radius of Fillet-R
  • 63.5
  • Thread Length-Q
