HG20595-97 PN10.0Mpa(100bar) 300 mm

  • Part No.
  • 0103010214
  • Manuf. No.
  • Standard Pack Quantity
  • 1
  • For prices and availability please Register or add to cart and submit as enquiry.
  • 　
  • EACH

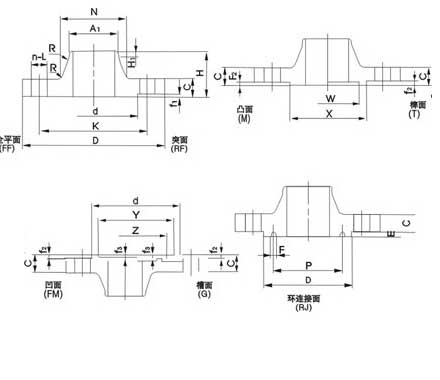

Description

  • Path mm
  • 300
  • Outside Diameter A1 mm
  • A:323.9 B:325
  • Flange Diameter D mm
  • 585
  • Center Bolt Hole Diameter K
  • 500
  • Bolt Hole Diameter L mm
  • 42
  • The Number Of Bolt Holes n
  • 16
  • Screw Thread Th
  • M39X3
  • Flange Thickness C mm
  • 68
  • Flange Diameter mm
  • N(A:400 B:400 ) S:20.5 ; H1: 18 ; R:10
  • Flange Height H mm
  • 170
  • Flange Theoretical Weight kg
  • 119.4
