Butt-Welding Elbows and Retutns ANSI B16.9、B16.28(22)

  • Part No.
  • 0102050519
  • Manuf. No.
  • Standard Pack Quantity
  • 1
  • For prices and availability please Register or add to cart and submit as enquiry.
  • 　
  • EACH

Description

  • Norminal Pipe Size DN
  • 22
  • Outside Diameter at Bevel
  • 558.8

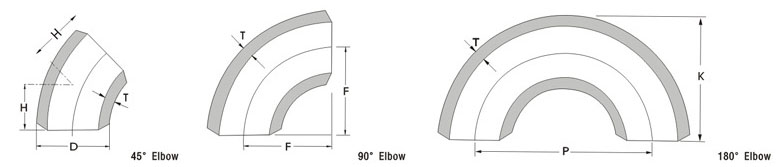

  • Center to End-45°Elbows-H
  • Long Redius:342.9
  • Center to End-90°Elbows-F
  • Long Radius:838.2;Short Radius:558.8
  • Center to Center-180°Retutn-P
  • Long Radius:1676.4;Short Radius:1117.6
  • Back to Faces-180°Return-K
  • Long Radius:1117.6;Short Radius:838.2
