6×19(a)和6×37(a) ROUND STRAND WIRE ROPE(96 mm)
- Part No.
- 0204010940
- Manuf. No.
- Standard Pack Quantity
- 1
Description
Rope type：6×19(a) 6x37(a)

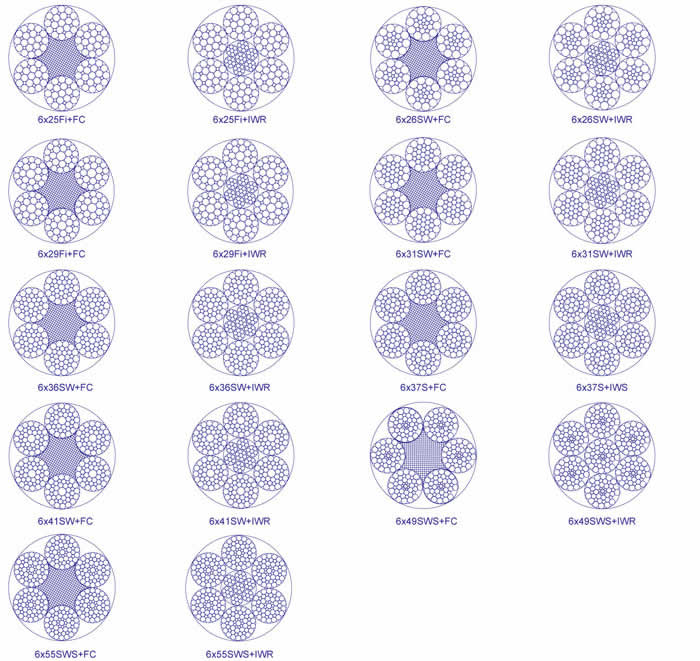

Rope Construction：6×25Fi+FC 6×25Fi+IWR 6×26SW+FC 6×26SW+IWR 6×29Fi+FC 6×29Fi+IWR 6×31SW+FC 6×31SW+IWR 6×36SW+FC
6×36SW+IWR 6×37S+FC 6×37S+IWR 6×41SW+FC 6×41SW+IWR 6×49SWS+FC 6×49SWS+IWR 6×55SWS+FC 6×55SWS+IWR
Note:Minimum aggregate breaking strength = Minimum breaking strength×1.134(fiber core) or 1.214(steel core)。
6×37s(fiber)：1.191(steel)：1.283
- Approx Weight(kg/100m)
- Fiber Core: Natural(3530 kg/100m);Synthetic(3530 kg/100m),Steel Core:3850 kg/100m
- Tensile Strength(1570mpa)
- Minimum Breaking Strength:Fiber Core(4770 kn);Steel Core(5150 kn)
- Tensile Strength(1670mpa)
- Minimum Breaking Strength:Fiber Core(5080 kn);Steel Core(5480 kn)
- Tensile Strength(1770mpa)
- Minimum Breaking Strength:Fiber Core(5380 kn);Steel Core(5810 kn)
- Tensile Strength(1870mpa)
- Minimum Breaking Strength:Fiber Core(5690 kn);Steel Core(6140 kn)
- Tensile Strength(1960mpa)
- Minimum Breaking Strength:Fiber Core(5960 kn);Steel Core(6430 kn)
- Tensile Strength(2160mpa)
- Minimum Breaking Strength:Fiber Core(- kn);Steel Core(- kn)
