6×19(a)和6×37(a) ROUND STRAND WIRE ROPE(82 mm)
- Part No.
- 0204010933
- Manuf. No.
- Standard Pack Quantity
- 1
Description
Rope type：6×19(a) 6x37(a)

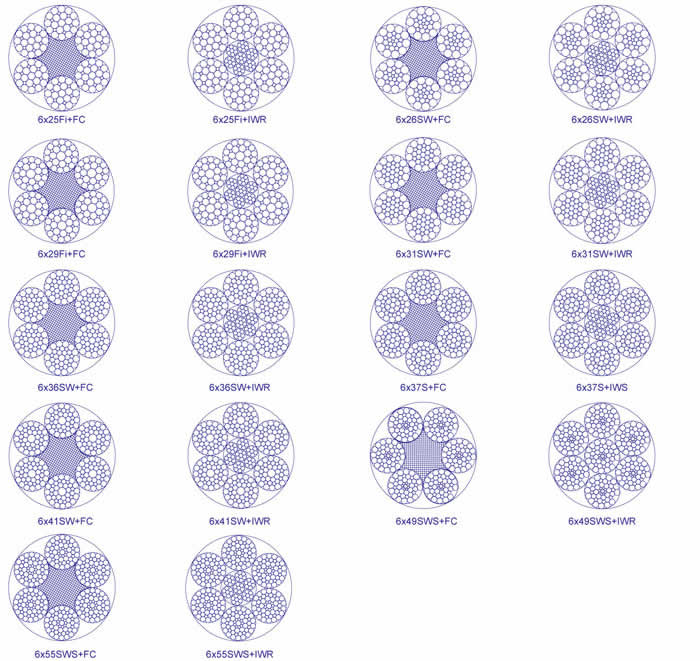

Rope Construction：6×25Fi+FC 6×25Fi+IWR 6×26SW+FC 6×26SW+IWR 6×29Fi+FC 6×29Fi+IWR 6×31SW+FC 6×31SW+IWR 6×36SW+FC
6×36SW+IWR 6×37S+FC 6×37S+IWR 6×41SW+FC 6×41SW+IWR 6×49SWS+FC 6×49SWS+IWR 6×55SWS+FC 6×55SWS+IWR
Note:Minimum aggregate breaking strength = Minimum breaking strength×1.134(fiber core) or 1.214(steel core)。
6×37s(fiber)：1.191(steel)：1.283
- Approx Weight(kg/100m)
- Fiber Core: Natural(2580 kg/100m);Synthetic(2580 kg/100m),Steel Core:2810 kg/100m
- Tensile Strength(1570mpa)
- Minimum Breaking Strength:Fiber Core(3480 kn);Steel Core(3760 kn)
- Tensile Strength(1670mpa)
- Minimum Breaking Strength:Fiber Core(3710 kn);Steel Core(4000 kn)
- Tensile Strength(1770mpa)
- Minimum Breaking Strength:Fiber Core(3930 kn);Steel Core(4240 kn)
- Tensile Strength(1870mpa)
- Minimum Breaking Strength:Fiber Core(4150 kn);Steel Core(4480 kn)
- Tensile Strength(1960mpa)
- Minimum Breaking Strength:Fiber Core(4350 kn);Steel Core(4690 kn)
- Tensile Strength(2160mpa)
- Minimum Breaking Strength:Fiber Core(- kn);Steel Core(- kn)
