6×19(a)和6×37(a) ROUND STRAND WIRE ROPE(48 mm)
- Part No.
- 0204010916
- Manuf. No.
- Standard Pack Quantity
- 1
Description
Rope type：6×19(a) 6x37(a)

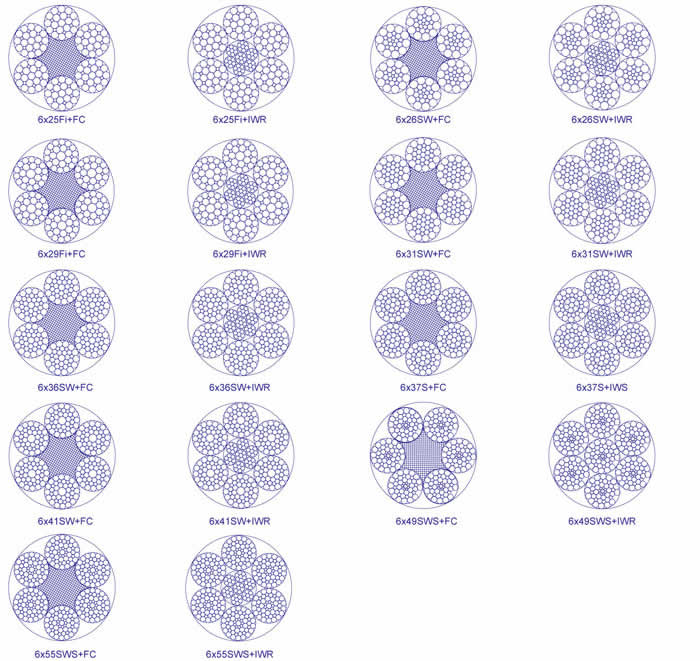

Rope Construction：6×25Fi+FC 6×25Fi+IWR 6×26SW+FC 6×26SW+IWR 6×29Fi+FC 6×29Fi+IWR 6×31SW+FC 6×31SW+IWR 6×36SW+FC
6×36SW+IWR 6×37S+FC 6×37S+IWR 6×41SW+FC 6×41SW+IWR 6×49SWS+FC 6×49SWS+IWR 6×55SWS+FC 6×55SWS+IWR
Note:Minimum aggregate breaking strength = Minimum breaking strength×1.134(fiber core) or 1.214(steel core)。
6×37s(fiber)：1.191(steel)：1.283
- Approx Weight(kg/100m)
- Fiber Core: Natural(876 kg/100m);Synthetic(855 kg/100m),Steel Core:963 kg/100m
- Tensile Strength(1570mpa)
- Minimum Breaking Strength:Fiber Core(1190 kn);Steel Core(1290 kn)
- Tensile Strength(1670mpa)
- Minimum Breaking Strength:Fiber Core(1270 kn);Steel Core(1370 kn)
- Tensile Strength(1770mpa)
- Minimum Breaking Strength:Fiber Core(1350 kn);Steel Core(1450 kn)
- Tensile Strength(1870mpa)
- Minimum Breaking Strength:Fiber Core(1420 kn);Steel Core(1530kn)
- Tensile Strength(1960mpa)
- Minimum Breaking Strength:Fiber Core(1490 kn);Steel Core(1610 kn)
- Tensile Strength(2160mpa)
- Minimum Breaking Strength:Fiber Core(1640 kn);Steel Core(1770 kn)
