6×19(a) ROUND STRAND WIRE ROPE(16mm)

  • Part No.
  • 0204010704
  • Manuf. No.
  • Standard Pack Quantity
  • 1
  • For prices and availability please Register or add to cart and submit as enquiry.
  • 　
  • EACH

Description

Rope type：6×19(a)

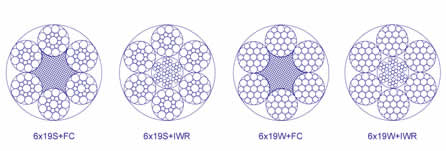

Rope Construction：6×19s+FC 6×19s+IWR 6×19W+FC 6×19W+IWR
Note:Minimum aggregate breaking strength = Minimum breaking strength×1.134(fiber core) or 1.214(steel core)。


  • Rope Diameter(mm)
  • 16 mm
  • Approx Weight(kg/100m)
  • Fiber Core: Natural(94.4 kg/100m);Synthetic(92.1 kg/100m),Steel Core: 104 kg/100m
  • Tensile Strength(1570mpa)
  • Minimum Breaking Strength:Fiber Core(133 kn);Steel Core(143 kn)
  • Tensile Strength(1670mpa)
  • Minimum Breaking Strength:Fiber Core(141 kn);Steel Core(152 kn)
  • Tensile Strength(1770mpa)
  • Minimum Breaking Strength:Fiber Core(150 kn);Steel Core(161 kn)
  • Tensile Strength(1870mpa)
  • Minimum Breaking Strength:Fiber Core(158 kn);Steel Core(170 kn)
  • Tensile Strength(1960mpa)
  • Minimum Breaking Strength:Fiber Core(166 kn);Steel Core(179 kn)
  • Tensile Strength(2160mpa)
