COLD CAST UP SETTED ANCHORAGE(ENTERPRISE STANDARD)φ5 Series(5X139 mm)

• Part No.
• 0206010108
• Manuf. No.
• Standard Pack Quantity
• 1

Description

Cables are according to Q/JL034-2008 Hot-extruding HDPE protection high strength wire cable technical conditions

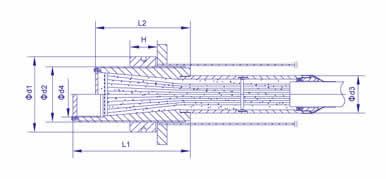

L1: Anchorage length at tensioning end
L2:Anchorage length at fixed end
H: Nut High
d1:Ouside Diameter Of Nut
d2:Outside Thread Diameter Of Anchorage
d3:Ouside Diameter Of Coupling Sleeve
d4:Thread Diameter Of Anchorage
