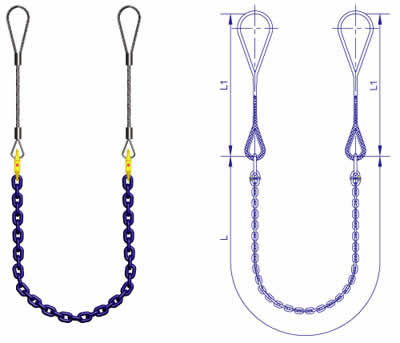

STEEL BLOCK CHAIN SLING(16 mm)

• Part No.
• 0203011205
• Manuf. No.
• Standard Pack Quantity
• 1

Description

Sling Standard: Q/JL018。
Chain standard: EN818-2。
the length of pressed wire rope sling =50 times of the diameter of the steel wire rope。
the length of spliced wire rope sling =70 times of the diameter of the steel wire rope。
Steel wire rope slings and chain slings are connected with the relevant long lifting ring ,chains and lifting rings are connected with connect collar or connecting link。
The working load limit in the table means the working load limit of single set of steel block chain sling ,and steel block chain sling is used in pairs。
1、used with balanced beam,WLL=2 times of the working load limit of single set。
2、used in the same line of shackle bar, WLL=1.4 times of the working load limit of single set。
all the steel wire rope sling use galvanised steel wire rope without oil。
Safety factor:4:1。
